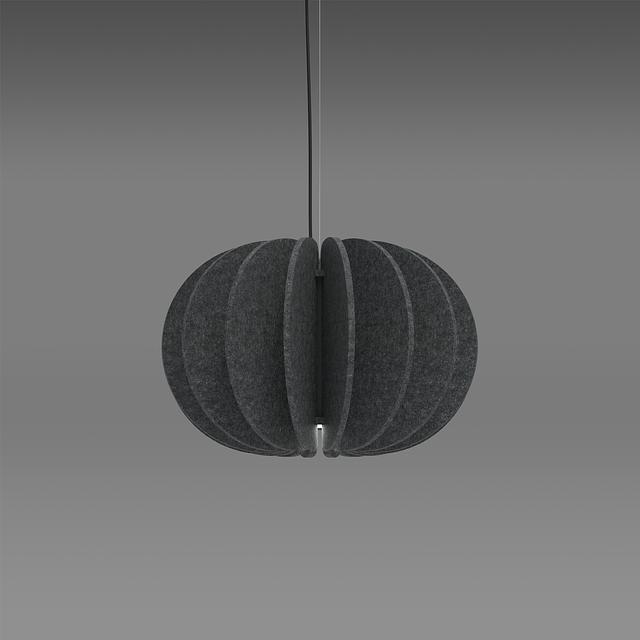

Sonic PIPE +SP
Sonic-Pipe+SP-04.jpgSonic PIPE +SP
Acoustic Round Pendant
- Architectural acoustic luminaire with direct lighting distribution.
- Light source: COB LED.
- High-efficiency integral reflector combined with opal lens insert provides excellent lighting distribution.
- Extruded aluminum body comes with a black or white finish.
- Removable fin-shaped Eco-Felt Baffles are attached to the top and face plate.
- Available in two standard sizes with various baffle shapes.
- Class 1 fire rated with 0.7 Noise Reduction Coefficient/1” Acoustic.
- LED spot is rated for 60,000 hrs. L70 with +90 CRI.
- Suitable for suspended installations.
- Custom finishes and modifications are available.
- ED luminaires are certified to CSA and UL standards
Resources
Materials
- Aluminum
- Felt
Mounting
- Pendant
- Suspended
Shape
- Round
- Spherical
Color / Finish
- Black
- White
Lumens
- 930
- 1200
- 1900
Watts
- 10
- 15
- 20
CCT
- 3000K
- 3500K
- 4000K
CRI
- 90
Circuit
- Single
Dimensions
- L: 24 In. W: 24 In. H: 16 In.
Dimming Protocol
- 0-10 V
Dimming Range
- 1%
- 10%
Lamp Life
- 60000
Lamp Source
- LED
Listings
- cULus
Voltage
- 120 V
- 277 V
Warranty
- 1 yr
