ED VECTOR 4+

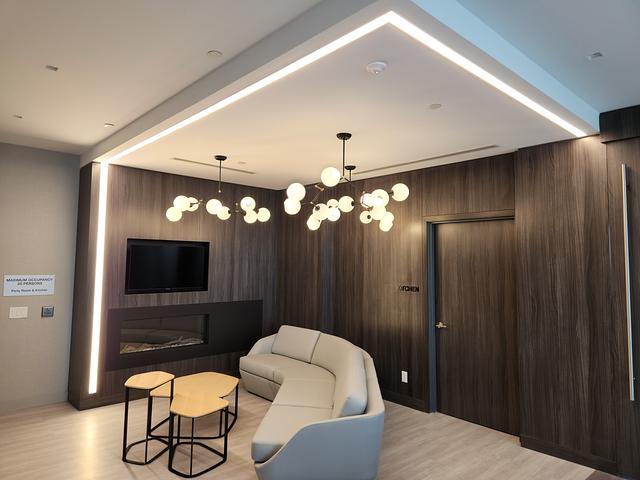

20230321_141105.jpgED VECTOR 4+
Architectural Linear Recessed Luminaire
- Â Â Architectural linear luminaire with direct distribution.
- Â Â Light source: LED board or LED strip.
- Â Â Even illumination is provided by high-efficiency opal lenses.
- Â Â Available for row-mounted installations in various lengths.
- Â Â Suitable for recessed applications in drywall or T-Bar ceilings.
- Â Â Extruded aluminum body comes with a standard black or white finish.
- Â Â Also available with various custom color options.
- Â Â LED Strips are rated for 60,000 hrs. L80 with +90 CRI.
- Â Â Has a proven record in office, commercial and retail installations.
- Â Â Custom modifications are available.
- Â Â ED luminaires are certified to CSA and UL standards
Resources
Materials
- Acrylic
- Aluminum
- Polycarbonate
Mounting
- Ceiling
- Recessed
- T-Grid
- Wall
Shape
- Linear
Color / Finish
- Black
- Custom
- White
Lumens
- 515 Lm
- 525 Lm
- 535 Lm
- 720 Lm
- 735 Lm
- 750 Lm
- 1030 Lm
- 1050 Lm
- 1080 Lm
Watts
- 5 w
- 7 w
- 10 w
CCT
- 3000K
- 3500K
- 4000K
CRI
- 90 CRI
Circuit
- Dual Circuit
- Single Circuit
Controls Options
- Bi-level Dimming
- Daylight Sensor
- Motion Sensor
- Occupancy Sensor
- Photocell
- Wireless Control
Dimming Protocol
- 0-10 V
- Bluetooth Wireless
- Casambi Wireless
- DALI
- DMX
- ELV (Trailing Edge)
- Lutron Athena
- Phase Dimming
- Triac (Leading Edge)
- eldoLED
Dimming Range
- 0-100%
- 1%
- Non-Dimmable
Distribution
- Asymmetical
- Diffuse
- Direct
- Glare Control
- Wall Wash
Dynamic LED Color
- BIOS
- RGBW
- Tunable White
Lamp Life
- 60000 hrs
Lamp Source
- LED
Listings
- CSA
- ETL
- UL
- cULus
Emergency Options
- EM Circuit
- GTD
- Integral EM Battery
Ratings & Compliance
- Damp
- Declare
- Made in Canada
Special Programs
- Rapid Response
Static LED Color
- BIOS Static
- Full Spectrum
Voltage
- 120 V
- 277 V
- 347 V
Warranty
- 5 yr
Integrated Brands
- Casambi
- Lutron Athena
