Sonic TRIAD+ FC/FS

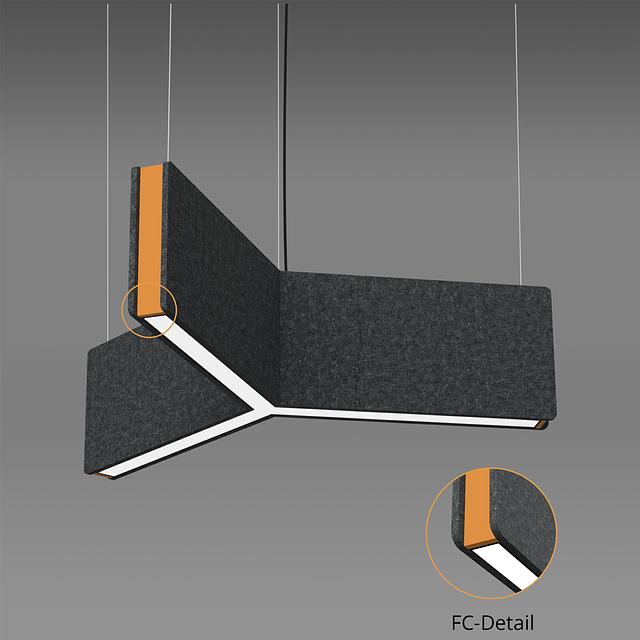

Sonic Triad+FC-Detail.jpg
Sonic Triad+FS-Detail.jpg

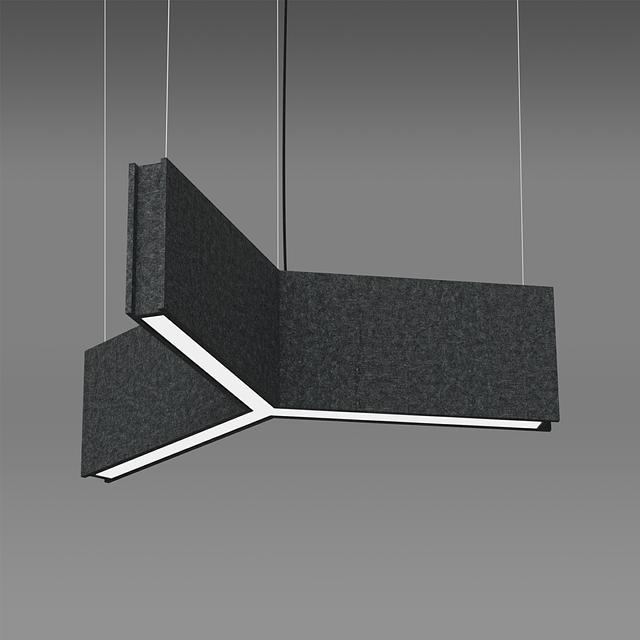

Sonic Triad+FS-04.jpg

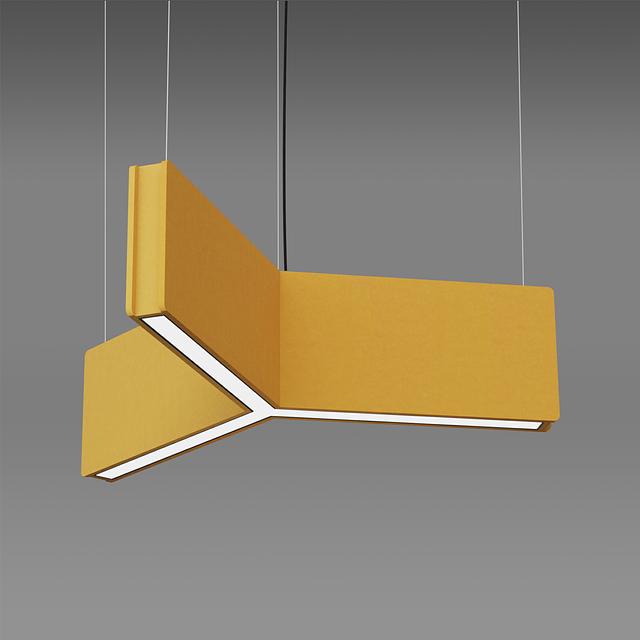

Sonic Triad+FC-11.jpgSonic TRIAD+ FC/FS
Acoustic Triad Luminaire
- Architectural sound absorbing Eco Felt Acoustic panel.
- Made from recyclable plastic material available in different thicknesses.
- Class 1 fire rated with 0.7 Noise Reduction Coefficient/1” Acoustic.
- Light source: LED boards.
- Diffused illumination is provided by high efficiency frosted opal lens.
- Extruded aluminum body comes with a built-in driver and is available in black or white finish.
- Also available with custom color options.
- LED strips are rated for 60,000 hrs. L80 with +90 CRI.
- Has a proven record in office, commercial, and retail installations.
- Custom modifications are available.
- ED luminaires are certified to CSA and UL standards.
Resources
Materials
- Aluminum
- Felt
- Polycarbonate
Mounting
- Suspended
Shape
- Triangular
Color / Finish
- Black
- White
Lumens
- 2610
- 2650
- 2690
- 5150
- 5250
- 5380
- 7720
- 7875
- 8030
CCT
- 3000K
- 3500K
- 4000K
CRI
- 90
Circuit
- Single
Dimensions
- L: 40.00. In. W: 43.00. In. H: 12. In.
- L: 56.60. In. W: 63.35. In. H: 16. In.
- L: 74.60. In. W: 84.15. In. H: 24. In.
Dimming Protocol
- 0-10 V
- Bluetooth Wireless
- DALI
- DMX
- Lutron Athena AWN
- Triac
Dimming Range
- 0-100%
- 1%
- < 1%
- Non-Dimmable
Distribution
- Diffuse
- Direct
Dynamic LED Color
- BIOS
- RGBW
- Tunable White
Lamp Life
- 60000
Lamp Source
- LED
Listings
- CSA
- ETL
- UL
- cETLus
- cULus
Lumens/Linear Ft.
- 535
- 750
- 1080
Ratings & Compliance
- Damp
- Declare
- Fire Rated
- Made in Canada
Special Programs
- Design Select
- Rapid Response
Static LED Color
- BIOS Static
Voltage
- 120-277 V
Warranty
- 5 yr
Integrated Brands
- Casambi
- Lutron Athena
